Brand:

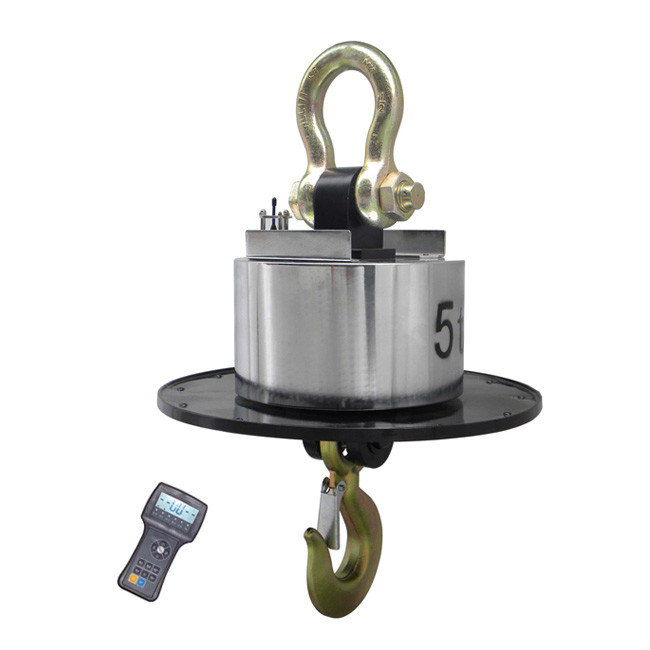

SiGMA SWH2 Series – Heavy Duty Wireless High Temperature Proof Crane Scale

Categories:

Call for price

Call for price
Call for price
Call for price
Call for price
Call for price
Call for price

The OCS SWH2 is manufactured with special and advance features to handle all type of requirements for high temperature heat resistance scale which can be used in industries which will be having high temperature.

  • Wireless proof high-temperature crane scale
  • Body Structure: Steel housing
  • American Standard shackle and 360 degrees’ swivel hook

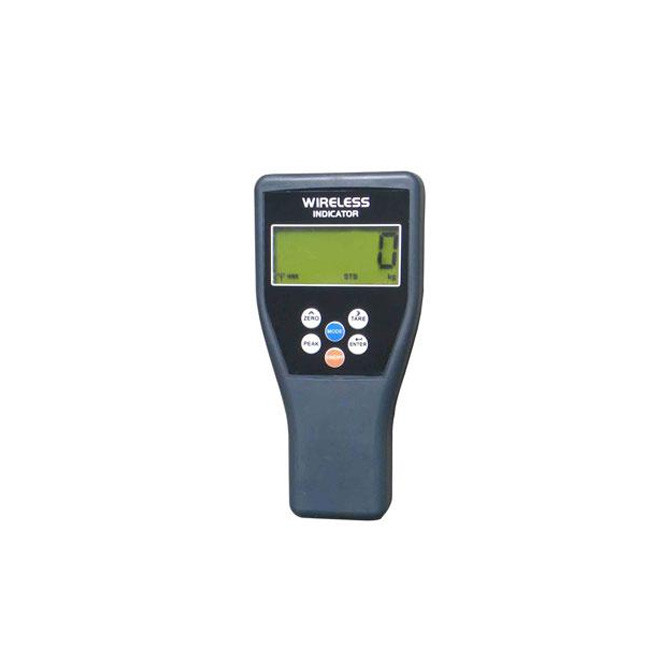

  • Wireless hand held indicator with LCD Display
  • Units: Kg/ Lb.
  • Used under high temperature environment. Especially in casting industry.
  • Functions: Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function
  • Power: 6V/4Ah rechargeable NI-H Battery, DC 4.8 V / 2.8 Ah rechargeable battery
  • Over Load Protection with alarm
GET QUOTATION

Brand:

SiGMA SWH2 Series – Heavy Duty Wireless High Temperature Proof Crane Scale

Categories:

Call for price

Call for price
Call for price
Call for price
Call for price
Call for price
Call for price

The OCS SWH2 is manufactured with special and advance features to handle all type of requirements for high temperature heat resistance scale which can be used in industries which will be having high temperature.

  • Wireless proof high-temperature crane scale
  • Body Structure: Steel housing
  • American Standard shackle and 360 degrees’ swivel hook
  • Wireless hand held indicator with LCD Display
  • Units: Kg/ Lb.
  • Used under high temperature environment. Especially in casting industry.
  • Functions: Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function
  • Power: 6V/4Ah rechargeable NI-H Battery, DC 4.8 V / 2.8 Ah rechargeable battery
  • Over Load Protection with alarm
GET QUOTATION

ModelWeighing Scale CapacityScale DivisionPrice
HS-SWH2-055 Ton2kgCall for price
HS-SWH2-1010 Ton5kgCall for price
HS-SWH2-1515 Ton5kgCall for price
HS-SWH2-2020 Ton10kgCall for price
HS-SWH2-3030 Ton10kgCall for price
HS-SWH2-5050 Ton20kgCall for price

The Heavy duty crane scale is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weighed or to measure force in high temperature environment.



Features:

  • Steel plate with heat-resistant material inside.
  • Seamless steel pipe enclosure for maximum protection.
  • Menu operation mode, calibration, saving, searching, peak hold, easy to operate
  • Indicator Adopts I: -.0. A/D conversion technology.
  • Weighing data save protection in case of power off.
  • Battery charger with several protection modes to extend life of rechargeable battery.
  • Standard RS232 communication interface(optional).
  • Portable design, indicator packed in portable carry case, easy to operate outdoor.
  • Gathering up to data records of 99 weighing, records can be sorted, searched.
  • Power saving mode, indicator will turn off automatically after 30minutes with no operation.
  • With 32 channels optional, so 32 crane scales can operate independently in the same air place without interface.
  • Special design: Used under high temperature environment. Especially in casting industry.
  • Multi-function: Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function.
  • User-friendly design: LCD with backlight, Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.



Accessories:

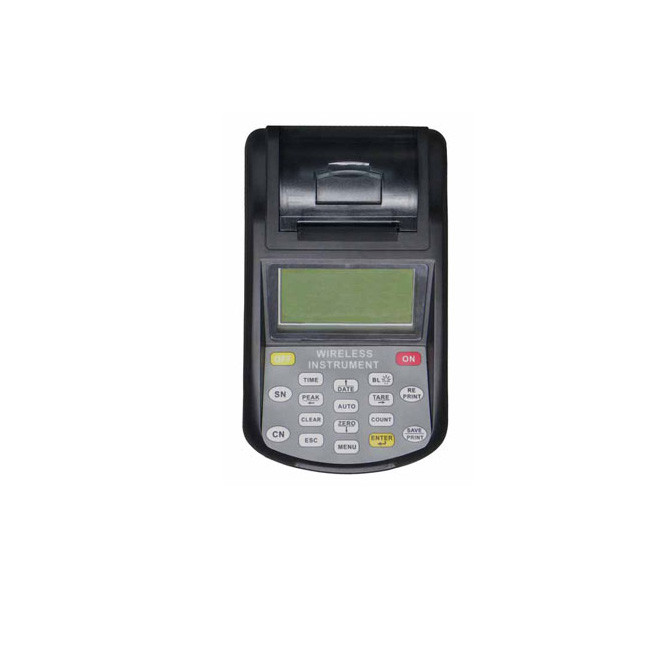

  • Wireless Display Remote Control with Printer
  • Battery



MODEL A(mm) C(mm) Φ1(mm) E(mm) Φ2(mm) H(mm) N.W.(kg)
OCS-SWH2-1 67 353 270 160 400 450 45
OCS-SWH2-2 95 40 270 160 400 510 47
OCS-SWH2-3 113 50 270 185 520 625 53
OCS-SWH2-5 122 60 325 185 520 710 62
OCS-SWH2-10 144 70 325 185 520 835 87
OCS-SWH2-15 166 85 325 185 520 900 100
OCS-SWH2-20 260 90 325 200 620 1055 130
OCS-SWH2-30 265 100 375 220 620 1140 210
OCS-SWH2-50 360 160 450 280 750 1680 575
