Brand:

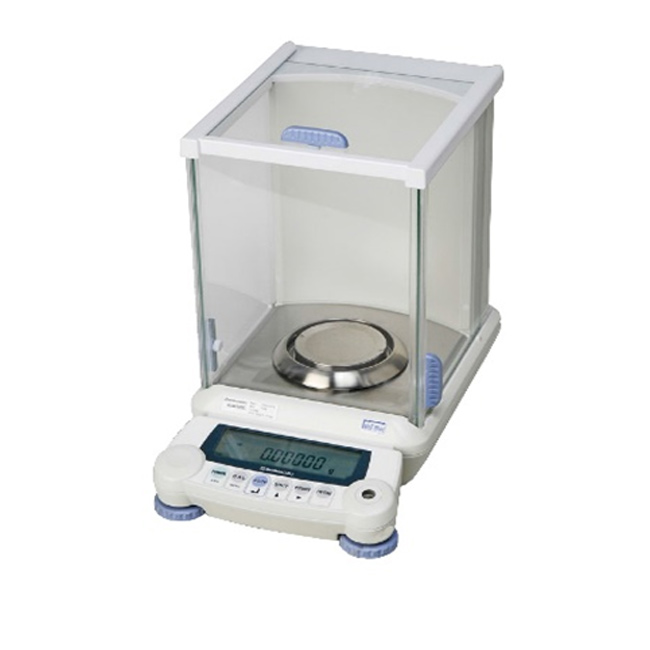

Shimadzu AUW Series Analytical Balances

Call for price

  • Brand: Shimadzu
  • Display: LCD display with backlight
  • Pan size (tray): Stainless Steel 80 mm Dia (rounded)
  • Power: AC adaptor ( DC12V, 1A )
  • Warranty: 1 Year Warranty
GET QUOTATION

Brand:

Shimadzu AUW Series Analytical Balances

Call for price

  • Brand: Shimadzu
  • Display: LCD display with backlight
  • Pan size (tray): Stainless Steel 80 mm Dia (rounded)
  • Power: AC adaptor ( DC12V, 1A )
  • Warranty: 1 Year Warranty
GET QUOTATION

AUW models are the newest single-range analytical balances engineered with the UniBloc technology. This provides fast response and superb stability in a 0.1mg analytical balance. Various application functions, two modes of fully automatic calibration and back lit display support any imaginable requirements.

User-friendly Features

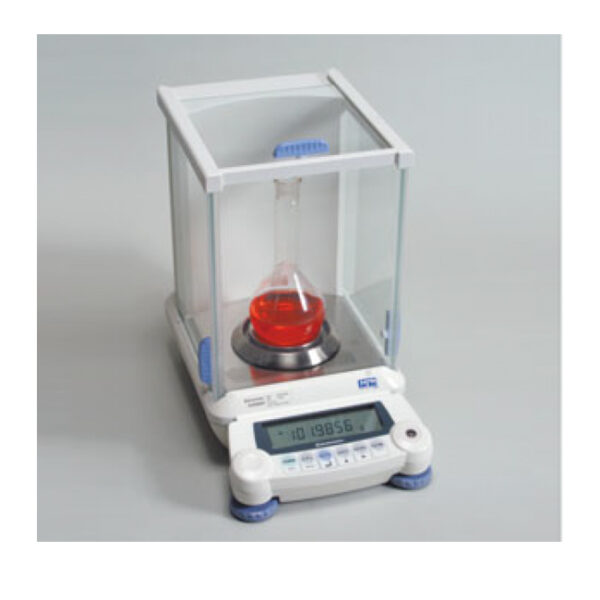

WIDE User-friendly Weighing Chamber. The large dimensions of the weighing chamber allow easy

measurement of even tall flasks. Equalization in temperature before measurement is essential in precision weighing. This is easy with the extra space allowing samples to be kept inside the chamber.

Weighing work is made easy by the smooth door movement. The doors can be detached to allow the chamber to be cleaned with ease and it is also possible to remove, clean or replace the door rail.

  • Precision Scale
  • Piece counting mode
  • Formulation mode
  • Automatic span calibration
  • Data management
  • WindowsDirect function
  • Interval timer

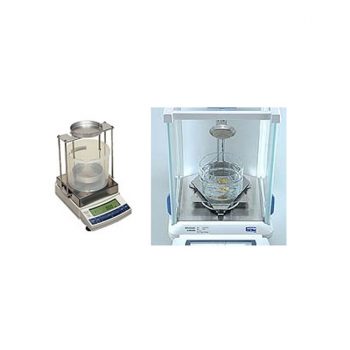

  • Specific gravity measurement
  • Below-weigh hook for Hanging measurement
  • Easy Level Adjustment
  • Metal Housing
  • Backlit Display
  • Comfortable Key Operation
  • Analog Bar Graph Display
  • In-use protective cover
  • Data directly jumps to your Windows®
  • Backlit LCD=
  • LCD with backlight can be read with ease and comfort under any lighting condition.
  • Analytical Balance
  • GPL/GMP/ISO calibration record
  • Standard Below-Weigh Hook option
  • Function: TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more
  • Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom conversion more than 20 unit in all
  • Shimadzu UniBloc sensor technology
  • Windows-Direct Communication Function; Very easy that Only a cable is needed to send weighing data to a computer
  • Continuous data output function
  • Alpha-numeric menu LCD display with adjustable contrast
  • Analog Bar Graph Display
  • Comparator (Pass/Fail Judgment) with Buzzer Support
  • Tray: Stainless Steel 80 mm Dia (rounded)
  • RS232C interface
  • Power: AC adaptor ( DC12V, 1A )



SPECIFICATIONS

Series AUW
Model AUW220
Capacity 220
Minimum display 0.1 mg
Repeatability (Standard deviation, o) <0.1 mg
Linearity +0.2 mg
Response time (typical)
Operating ambient temperature 5 to 40 °C
Temperature coefficient of sensitivity
(10 to 30°C)
PSC is Off)
Sensitivity stability against temperature
change (When PSC is On, 10 to 30°C)
Pan size mm dia approx.
Body dimensions mm X
Weight 7 kg approx.
Power consumption VA approx.

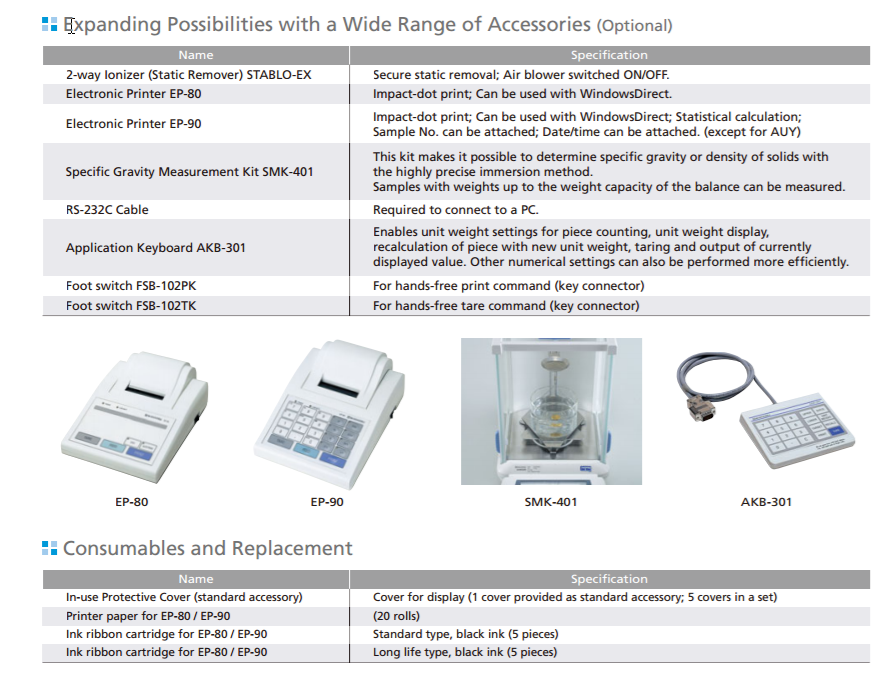

ACCESSORIES

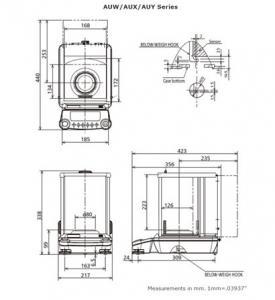

DIMENSIONAL DETAILS

Additional information

Model

Scale Division

Series

Product type

Weighing Scale Capacity

Interface

Power Supply

Type of display

Units

, , , ,

Warranty

Placement

Tray Size
