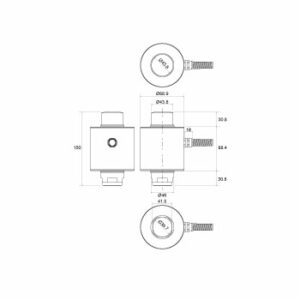

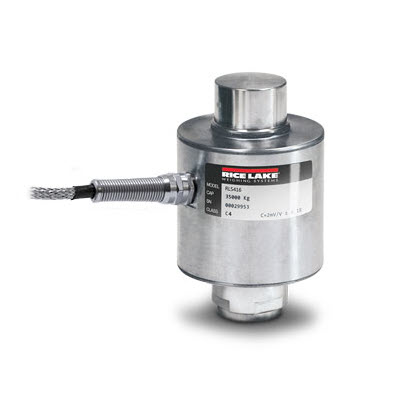

TECNICAL FEATURES

METROLOGICAL FEATURES

• Rated capacity: (F.S.): 20 t, 30 t, 40 t, 50 t
• Combined error: 0,022 %F.S.
• Creep error (after 30 min.): 0,014 %F.S.
• Temperature effect on zero: 0,02 %F.S./10°C
• Temperature effect on sensitivity: 0,01 %F.S./10°C
• Non-linearity error: 0.015%F.S.
• Non-repeatability error: 0.006%F.S.

OIML R60

• Vmin= Emax/14000
• Accuracy class: C4
• Max. number of intervals: 4000e OIML

ELECTRONIC\MECHANICAL FEATURES

• Gas dischargers to protect against atmospheric discharges
• Power Supply: 5÷15 V (AC or CC)
• Rated output at F.S.: 2 ± 0.05% mV/V
• Input resistance: 800 ± 3Ω
• Output resistance: 700 ± 3Ω
• Insulation resistance: 5000MΩ
• Operating temperature: -35 ~ +70 °C
• Compensated temperature for homologation: -10 ~ +40 °C
• Storage temperature limits: -40° ~ +80°
• Normal service: 120% F.S.
• Maximum load / Safe load: 150% F.S.
• Ultimate overload: 300% F.S.
• IP69K protection degree
• Stainless steel body
• 6-core cable with stainless steel shield, length 20 m, diameter 6mm
• Nickel plated steel cable gland with protective spring
• Self-centring spherical bases
• Equipped with anti-rotation system, to be combined with 173793 cups for proper operation

INSTALLATION KIT

• The 173793 kit allows a correct installation of the RL5416 load cells below the weighbridge plate.
• The kit consists of an upper cup and a lower cup with anti-rotation system. All components are made from stainless steel. Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.
