Brand: Rice Lake
Categories: Hanging & Crane Scale
0.00 AED (Excl. VAT)
0.00 AED (Excl. VAT)
Tags: Petrascale

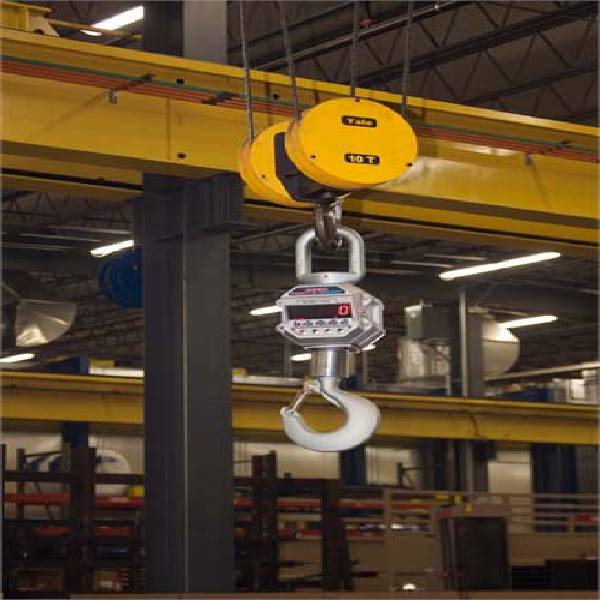

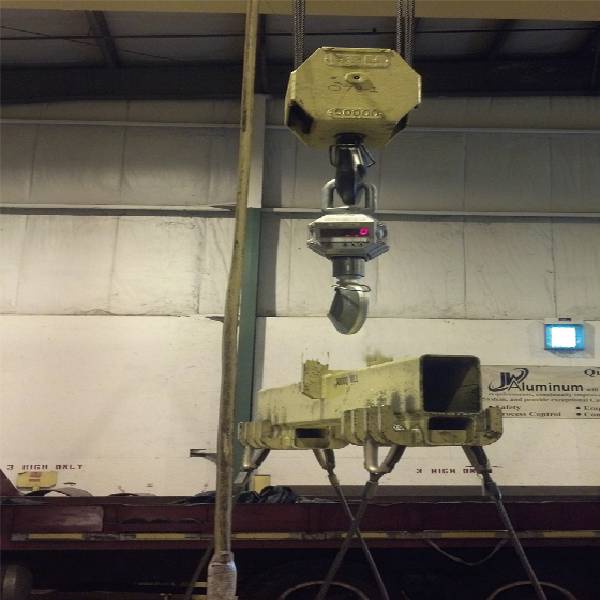

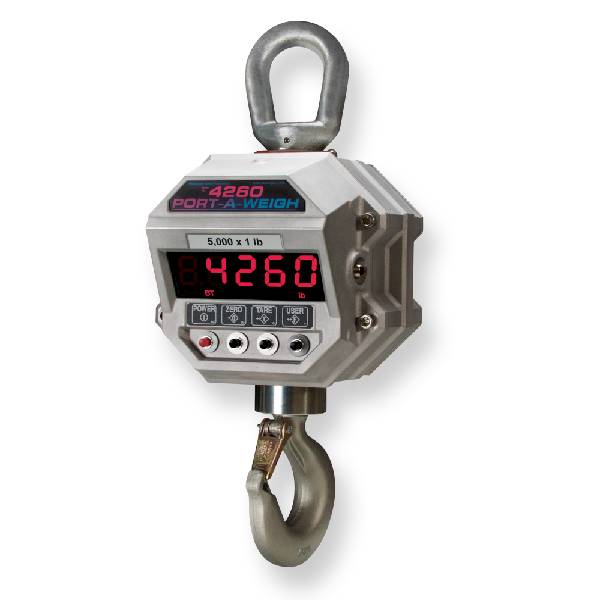

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.
| Accuracy: ± 0.1% +1 d of applied loadResolution: 3000 to 5000 d standard (Up to 10,000 d available)Enclosure: NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminumLifting Eye, Shackle & Hook: Crosby® or equal with 360° thrust-bearing swivel hookDesign Overload: 200% Safe / 500% Ultimate (except where noted)Functions: Power: Turns Unit ON or OFF, Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration), Tare: Tares applied load and displays weight in Net mode, F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD |
Display: Five digit, 1.2 in (30 mm) LED with programmable brightness controlDisplayable Units: Pounds or kilograms selectableAnnunciators: COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, SetpointsPower: 12 Volt rechargeable battery. 115/230 VAC battery charger is includedOperating Time: Up to 200 hours between charging with typical use, less with optional RF Modem LinkOperating Temperature: -4°F to 140°F (-20°C to 60°C)Auto-Off Mode: Select for 15, 30, 45 minutes, 1 hour or Off |
Auto Sleep Mode: Power down during non-use and power up with weight change or any key pressService Counters: Counts number of lifts over percentage of capacity and lifts over capacityCalibration: DigitalFiltering: OFF, LO, HI-1, HI-2 selectableWarranty: One-year limitedApprovals: NTEP CC 89-090 – 500 lb-2,000 lb (250 kg-1,000 kg) NTEP CC 88-098A2 – 5,000 lb-70,000 lb (2,000 kg-35,000 kg) |
| Model | |
|---|---|
| Placement | |
| Power Supply | |
| Product type | |
| Series | |
| Type of display | |
| Units | |
| Warranty |
