0.00 AED (Excl. VAT)
Compact size

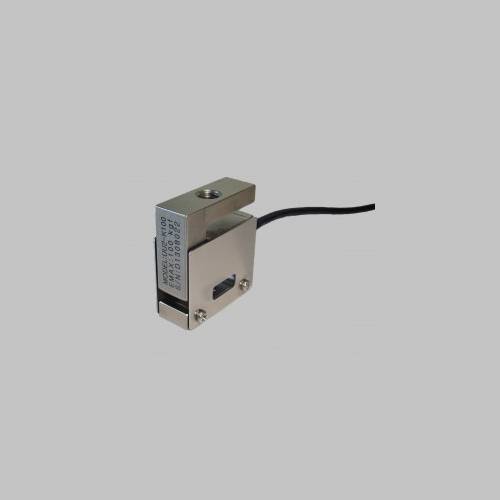

These are extremely accurate and compact Tension/Compression load cell.
Tags: Analog Load Cell, Force Sensor, Force Transducer, Load Cell Sensor, Petrascale, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Strain Sensor, Stress Gauge, Stress Gauge Sensor, Torque Sensing, Weighing Sensor, Weight Scale Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer
| Specifications | Accuracy |
|---|---|
| Rated capacity(R.C) | 5kgf,10kgf, 20kgf, 50kgf, 100kgf |
| Rated output(R.O) | 2.0mV/V ± 25% |
| Nonlinearity | 0.05% of R.O. |
| Hysteresis | 0.05% of R.O. |
| Repeatability | 0.05% of R.O. |
| Zero Balance | ±2% of R.O. |
| Temp. Effect on rated output | 0.05% of LOAD/10℃ |
| Temp. Effect on zero balance | 0.1% of R.O./10℃ |
| Temperature range, compensated | -10~60℃ |
| Temperature range, safe | -20~80℃ |
| Terminal resistance input | 350 ±80Ω |
| Terminal resistance output | 350 ±2Ω |
| Insulation resistance bridge | 2000MΩ |
| Excitation recommended | 10V |
| Safe overload | 150% R.C |
| Cable length | Φ3mm x 4core x 3m |
| Material | 5 ~ 20kgf : Alunminum 50 ~ 100kgf : Steel |
| model | SL15, SL30, SL50, SL100, SL300, SL500, SL1000 |
|---|
