Laumas WDESK-L Weight Indicator, IP67 Waterproof, Controller for Weighing and Batching

0.00 AED (Excl. VAT)

Out of stock

  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc
GET QUOTATION

Brand:

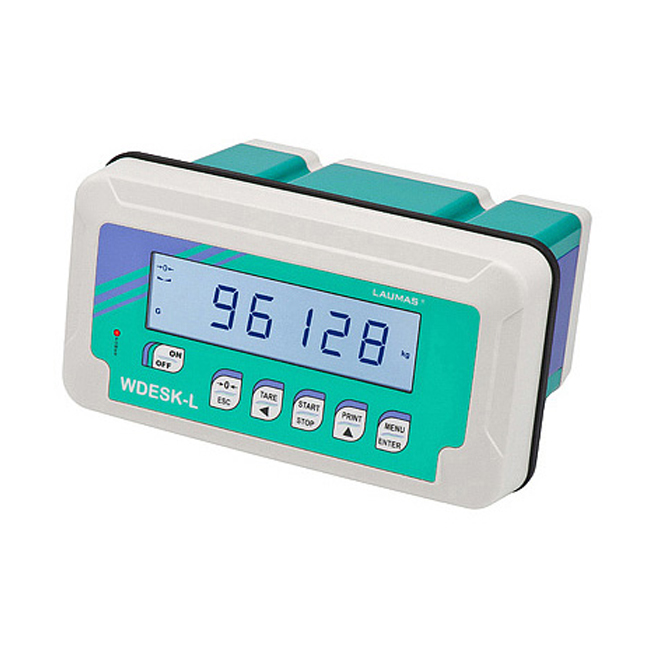

Laumas WDESK-L Weight Indicator, IP67 Waterproof, Controller for Weighing and Batching

0.00 AED (Excl. VAT)

Out of stock

  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc
GET QUOTATION

Features:

  • ABS Weight Indicator.
  • Dimensions 122 x 226 x 164 mm.
  • IP67 protection rating. Six-key membrane keyboard. 46 indicator symbols.
  • Real-time clock/calendar.

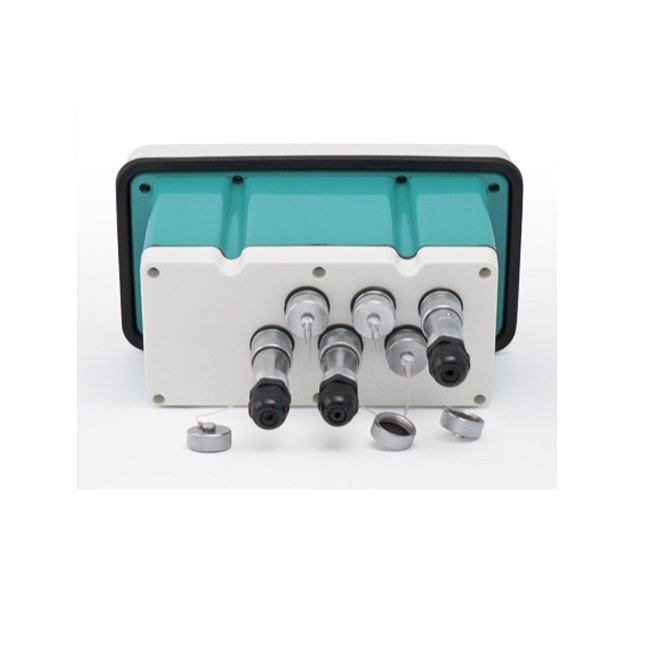

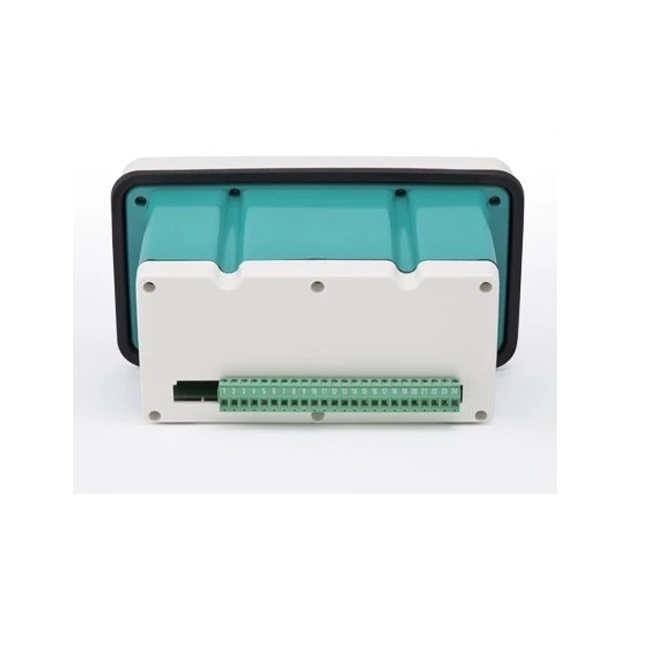

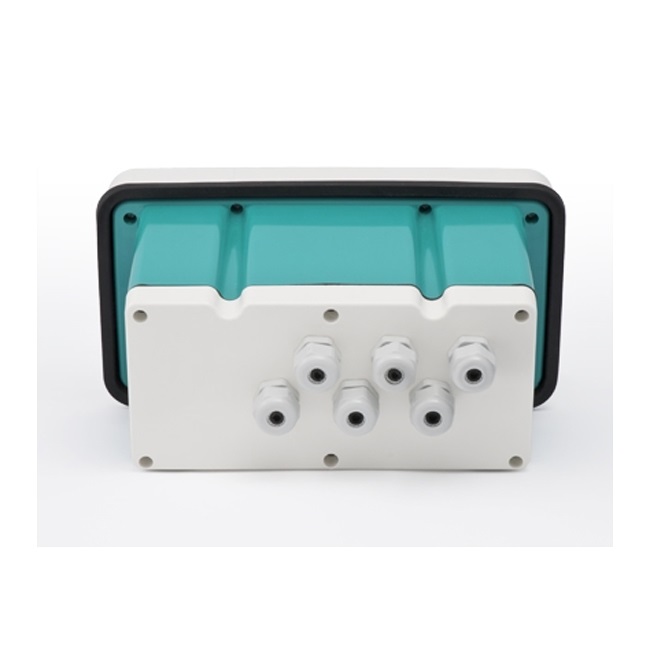

  • Different versions for various types of electrical connections: cable glands, D-SUB, connectors, removable terminal.
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999



CERTIFICATIONS:

  • OIML R76:2006, class III, 3×10000 divisions, 0.2 μV/VSI / OIML R61 – WELMEC Guide 8.8:2011 (MID)
  • UL Recognized component – Complies with the United States and Canada standards
  • Complies with the Eurasian Custom Union standards
  • CERTIFICATIONS ON REQUEST
    Conformity assessment (initial verification) in combination with Laumas weighing module
    Support for metric label (dimensions: 124x77x1.5 mm)
    NMI Trade Approved – Complies with the Australian standards for legal use with third parties
    Complies with the regulations of the Russian Federation for legal use with third parties





Additional information

Model

WDESK L

Description

Laumas – IP67 Weighing Indicator
