Brand: Dini Argeo
Categories: Parts, Weighbridge Parts and Accessories
2,100.00 AED (Excl. VAT)
Brand: Dini Argeo
Categories: Parts, Weighbridge Parts and Accessories
2,100.00 AED (Excl. VAT)

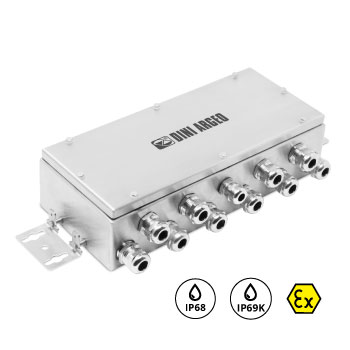

Junction and equalization box in AISI 304 stainless steel with certified IP68 and IP69K protection from water and dust.
Suitable for use outdoors, in weighbridges and in environments with high hygiene requirements. This junction box is equipped with Surge Arresters against electric discharges and disturbances.
The fixing bracket allows a solid installation of the box on any kind of surface, even on the wall, leaving the adequate space for cleaning and sanitation.
Main Features
AISI 304 stainless steel structure, specially designed for outdoor use, weighbridges and applications with high hygiene requirements
IP68 and IP69K certified protection, easy to sanitize with high-pressure and high-temperature water jets
Connectable with up to 10 load cells
Surge Arresters for protection against electrical discharges and disturbances
Bracket for mounting on any surface supplied as standard
Available in ATEX version upon request.

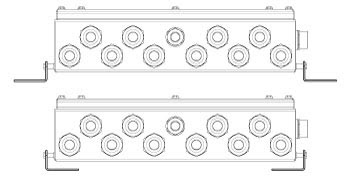

Examples of bracket mounting, simple or for a minimal encumbrance.
| Model | |
|---|---|
| Description | Stainless steel equalised junction box for up to 10 load cells. IP68 and IP69K protection rating, with 11 PG11 cable glands. |
