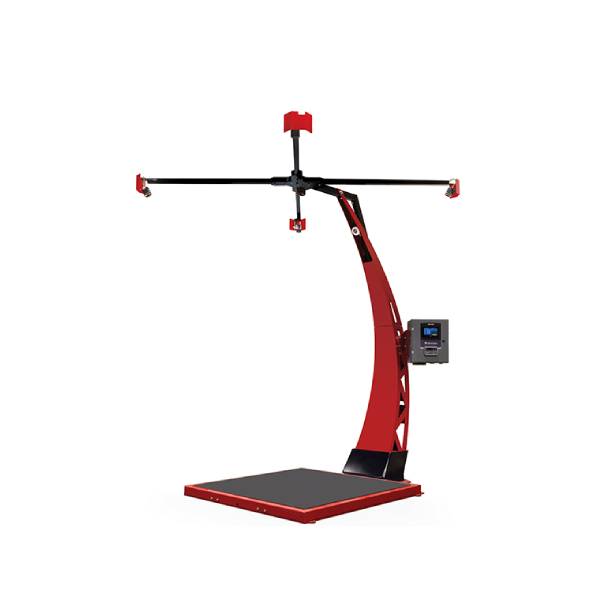

The iDimension PWD dimensioner and scale system provides shippers with the dimensions and weight of palletized shipments, empowering users to identify the correct freight class and reduce the risk of non-compliance fees from carriers. Ensure invoiced freight charges are accurate at the time of shipment and receive a measurable, nearly instantaneous return on investment with the iDimension PWD.
In less than a day, the iDimension PWD can be unboxed, set up and put to work.

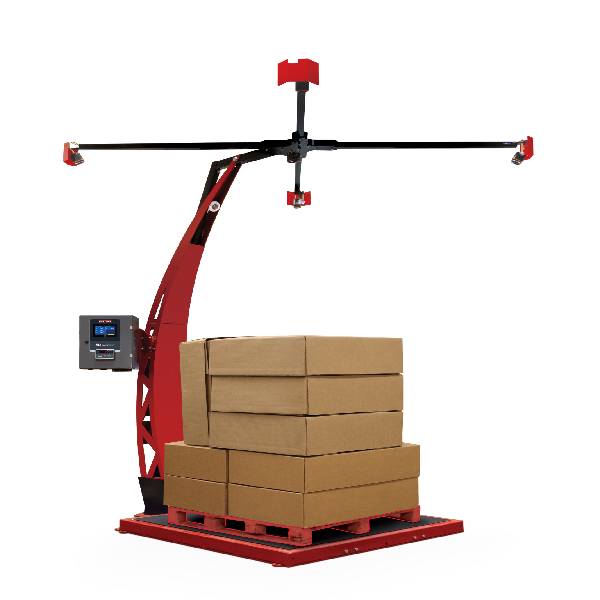

The iDimension PWD can be loaded with a forklift or side-loaded with a pallet jack and optional access ramps. Simply place the pallet on the floor scale and use the USB-connected display, optional bar code scanner or web browser to trigger the PWD to capture dimensions. In less than two seconds, the iDimension PWD measures and provides dimensions and weight, and takes a digital picture the item with the optional high-resolution camera.
iDimension PWD is capable of measuring pallets up to six feet and packages as small as six inches, cubed.
For non-Legal for Trade applications, iDimension PWD can tare pallet measurements to provide only the dimensions of objects on the pallet.
The iDimension PWD is designed to easily transfer dimensions, weight and images to a network, simplifying claims processes. Built with a web server interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing. The iDimension PWD optional high-resolution camera quickly captures images of freight condition at time of shipment.
| Legal for Trade Measurement Range (L x W x H): Maximum freight size: 72 in x 72 in x 72 in (1,829 mm x 1,829 mm x 1,829 mm) Minimum freight size: 6 in x 6 in x 6 in (152 mm x 152 mm x 152 mm)Measurement Increment: 0.5 in (1 cm)Performance Characteristics: Most surfaces are captured, transparent/translucent and glossy surfaces may provide a variance.. Item Placement: |
Minimum Pallet Height: 4.25 in (108 mm) wood palletsShapes: Solid shapes, (3-inch (76 mm) protrusions or more) will be included in dimensionsLighting Conditions: Operates in any indoor lighting environment System Contents: Power Requirements: |
Optional Network Camera: Wide angle POE network color camera with 3-axis camera angle adjustment. IP24 rating. Standard 2688 x 1606 pixels @ 751kb standard output in .jpeg format. Configurable for time and date, scan ID, system serial #, dimensions and dimensional indicatorsOperating Temperature: 14°F to 104°F (-10°C to 40°C)Humidity: 0-90% non-condensing Warranty: Packaging Dimensions: Approvals: |
High Resolution Camera
Wireless Barcode Scanner
Access Ramps
Overhead 5th Sensor
Software Programs
| model | SL15, SL30, SL50, SL100, SL300, SL500, SL1000 |
|---|
