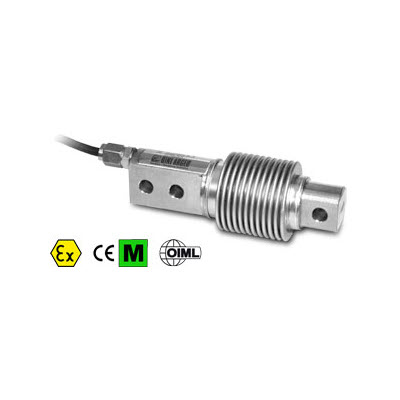

Bending beam load cells for approved weighing (capacities from 100kg to 500kg), automatic systems, dosage.
CAPACITIES (kg): 10, 20 , 50, 100, 200, 300, 500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.

GET QUOTATION

Brand:

FXD Series Bending Beam Load Cells

930.00 AED1,180.00 AED (Excl. VAT)

930.00 AED (Excl. VAT)

Available on backorder

930.00 AED (Excl. VAT)

Available on backorder

930.00 AED (Excl. VAT)

Available on backorder

930.00 AED (Excl. VAT)

Available on backorder

930.00 AED (Excl. VAT)

Available on backorder

930.00 AED (Excl. VAT)

Available on backorder

1,180.00 AED (Excl. VAT)

Available on backorder

Bending beam load cells for approved weighing (capacities from 100kg to 500kg), automatic systems, dosage.
CAPACITIES (kg): 10, 20 , 50, 100, 200, 300, 500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.

GET QUOTATION

ModelMax (kg)Price
FXD1010930.00 AED (Excl. VAT)
FXD2020930.00 AED (Excl. VAT)
FXD5050930.00 AED (Excl. VAT)
FXD100100930.00 AED (Excl. VAT)
FXD200200930.00 AED (Excl. VAT)
FXD300300930.00 AED (Excl. VAT)
FXD5005001,180.00 AED (Excl. VAT)

MAIN FEATURES

  • C3 PRECISION CLASS
  • STAINLESS STEEL
  • IP68 PROTECTION
  • MAX. CAPACITIES FROM 10 TO 500 kg
  • SHIELDED CONNECTION CABLE
  • OIML CERTIFICATE AVAILABLE UPON REQUEST
  • TEST CERTIFICATE AVAILABLE UPON REQUEST



TECHNICAL FEATURES

  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of verification intervals: nLC= 3000
  • Full Scale Output: 2 mV/V ± 0,1%
  • Combined error: 0,012% of Full Scale Output (F.S.)
  • Non-Repeatability: 0,01% F.S.
  • Temperature effect on zero: +/- 0,02% F.S. / 10°C
  • Temperature effect on full scale output: +/- 0,02% F.S. / 10°C
  • Compensated Temperature Range: –10°C/+50°C
  • Operating Temperature Range: –20°C/+60°C
  • Creep error after 30 minutes +/- 0,012% F.S.
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 385 ± 10 Ohm
  • Output Resistance: 350 ± 3 Ohm
  • Insulation Resistance: > 5000 MOhm
  • Safe Overload: 120% F.S.
  • Ultimate Overload: 150% F.S.
  • Nominal displacement: < 0,4 mm
  • 4-wire shielded cable, 3m long, 5mm diameter.

Additional information

Model

FXD10, FXD20, FXD50, FXD100, FXD200, FXD300, FXD500

Max (kg)

10, 20, 50, 100, 200, 300, 500
