35,365.00 AED (Excl. VAT)

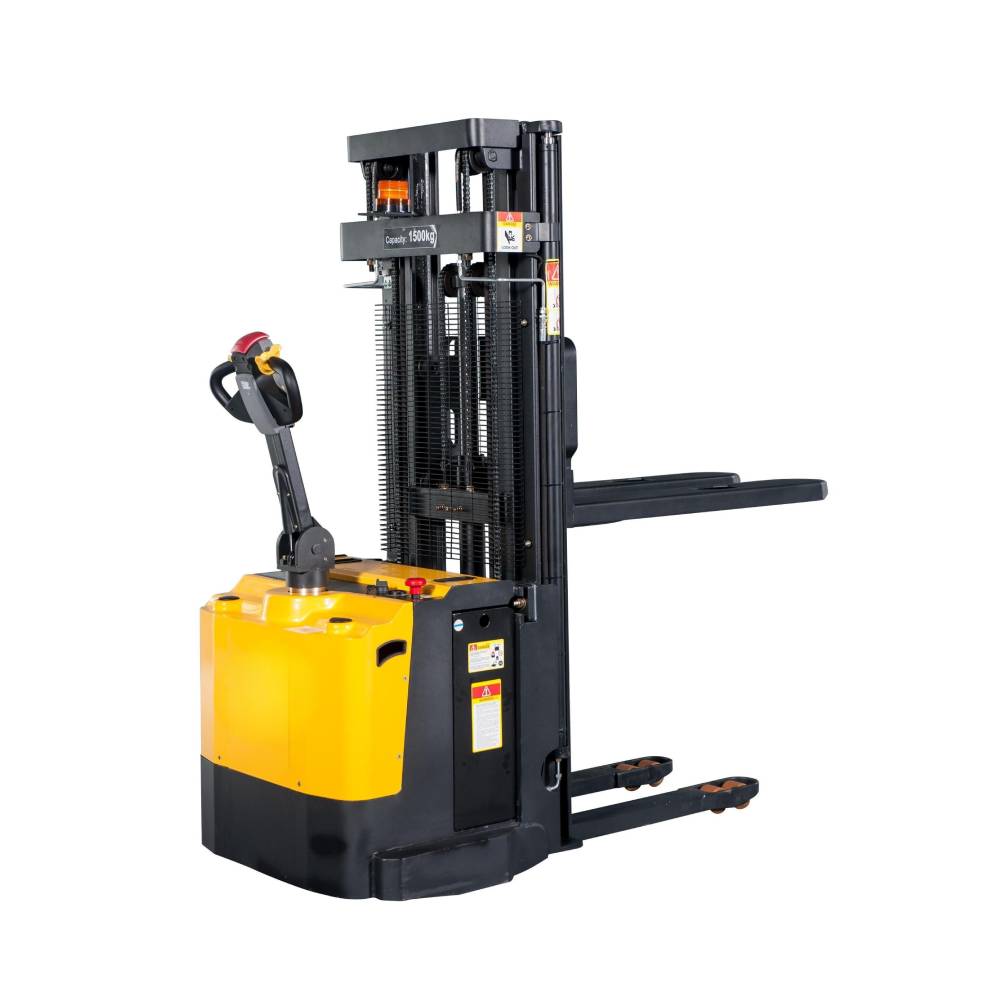

The ES series is classic electric stacker with high performance by AC drive technology. It carries out intensive stacking operations, with capacities from 1200kg (2600lbs), 1500kg (3300lbs) to 2000kg (4400lbs) and lifting height from 1600mm to 6300mm.
35,365.00 AED (Excl. VAT)
The ES series is classic electric stacker with high performance by AC drive technology. It carries out intensive stacking operations, with capacities from 1200kg (2600lbs), 1500kg (3300lbs) to 2000kg (4400lbs) and lifting height from 1600mm to 6300mm.
| Model | Weighing Scale Capacity | Height | Lifting Capacity (Weight) | Fork Length | Fork Width | Lifting Height | Price |
|---|---|---|---|---|---|---|---|
| ES15T4-4500 | 1.5 Ton | 4.5m | 1.5 Ton | 1150mm | 170mm | 4500mm | Call for price |
| ES15T5 | 1.5 Ton | 5m | 1.5 Ton | 1150mm | 170mm | 4500mm | 35,365.00 AED (Excl. VAT) |
Handle
All operating elements on the handle are easy to reach.
Electric power steering (optional)
Electric power steering brings effortless operating and easy maneuvering even in narrow spaces.
The innovative AC drive system offers strong power, accurate control, excellent performance.High strength gearbox with long working life.
Low noise but durable hydraulic unit, good quality cylinder as well as hose ensure high reliability of hydraulic system.
H +H shape mast improves the strength of whole stacker.
Triplex mast lifts up to a height of 6300mm.
Standard battery
Long opreating time with high capacity.
Tandem load wheels
Easier to roll over uneven ground.
Optional foldable platform & protectiv arm
Suspension foldable platform with protective arms.
The ergonomically designed foldable platform in combination with protective arms makes operations faster and safer.
| Model | |
|---|---|
| Weighing Scale Capacity | |
| Height | 4.5m, 5m, 6.3m |
| Warranty | |
| Product type | |
| Series | |
| Lifting Capacity (Weight) | 1.5 Ton |
| Fork Length | 1150mm |
| Fork Width | 170mm |
| Lifting Height | 4500mm |
