DOSAGE FUNCTIONS

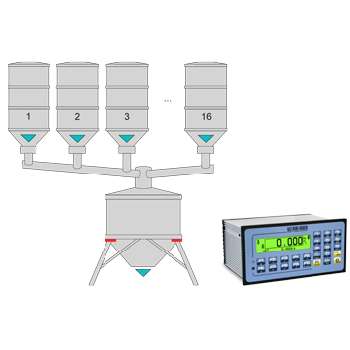

• Management of the dosage on various scales (up to 4 independent), with automatic scale change during the dosage.
• Check of the tare presence at dosage start with tare values programmable for each recipe.
• Automatic recalculation of the formula targets, by entering the total weight to be dosed.
• Automatic printing of the dosage data.
• Storage and printing of the consumptions. Quick recall of the printouts from keyboard.
• Automatic correction of the flight weight.
• Programmable number of repetitions of the dosage cycle; function of continuous cycle.
• Tolerance test on the dosed weight, with guided correction through simple messages on the display.
• Control of the maximum dosage time.
• Alarm management on the display.
• Completely programmable printouts, for compatibility with any ASCII printer manageable through the serial port.

DATABASES

• Database of 100 products/activities, which may be selected from the following.
  – Automatic dosage in loading.
  – Manual dosage in loading, with possibility of managing the control light.
  – Complete or partial unloading.
  – Fractioned unloading, for dividing all the dosed material in equal quantities.
  – Timer, to activate the mixers, burners, or stirrers for a preestablished time.
  – Pause, to allow the manual operations of the user.
  – Manual weight, to add the pre-weighed quantities to the dosage.
• Database of 500 formulas; each formula contains 20 products/activities.
• Programming of the activities and the recipes in manual mode or through software on PC (Dinitools).

KEYBOARD FUNCTIONS

• START / RESTART dosage, PAUSE / RESET cycle and introduction / selection formula.
• Quick switch of the dosage target, through a dedicated key.
• Quick introduction and selection of the dosage data.

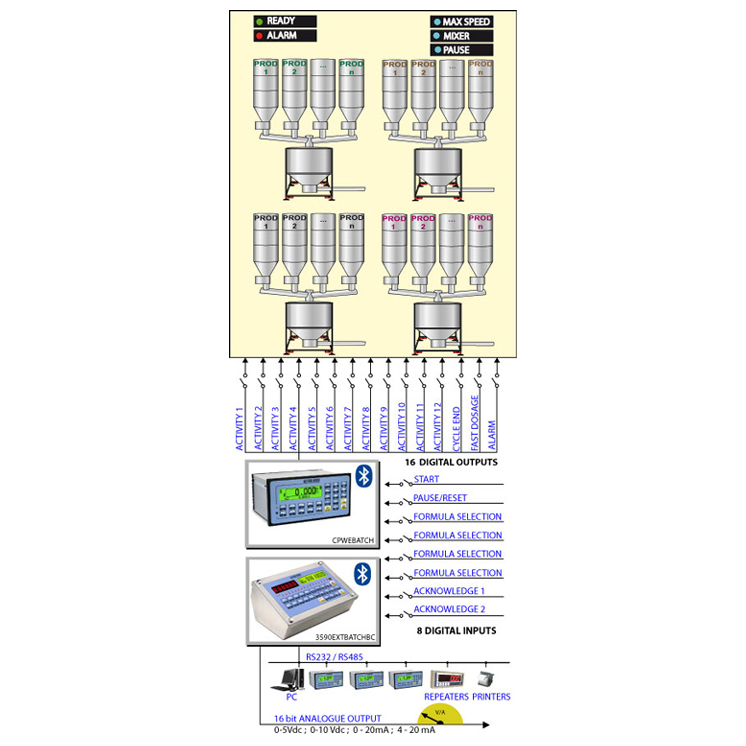

I/O FUNCTIONS

• START / RESTART dosage, PAUSE / RESET cycle through external inputs.
• Formula selection through external inputs.
• Dual dosage speed (approximate and fine), managed through any available contacts or analogue output (optional).
• “Fine” dosage contact active either constantly or intermittently (jogging).
• Management of the material levels through “under minimum level” and “over maximum level” contacts.
• Inputs and outputs with programmable functions.
• Analogue output (optional) proportional to the weight or to the dosage speed.
• Serial communication protocol for programming the formulas, the products and managing the cycle.
•
  Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC or PDA.
