TECHNICAL FEATURES

METROLOGICAL:

• Rated capacity (Cn): 30/40t
• Combined error: ± 0,014 %Cn
• Temperature effect on zero: 0,0016 %Cn/°C
• Temperature effect on sensitivity: 0,0012 %Cn/°C
• Creep error (30 min.): 0,021 %Cn

LEGAL METROLOGY OIML R60

• Accuracy class: C4
• Max. number of intervals (nmax): 4000e OIML
• Minimum verification interval (vmin): 10000
• Z= Emax/(2xDR): 4000

ELECTRICAL

• Nominal range of excitation voltage: 10 – 16Vdc
• Rated output: 200000d
• Current consumption: 35mA
• Conversion type: Delta-sigma
• Internal resolution: 24 bit
• Converter rate: max. 100 conv./sec.
• RS485 interface communication rate: 4800/19200 bit/sec.
• Protection against electrostatic discharge according to IEC 61326-1

GENERAL

• Service temperature range: -20 ~ +60 °C
• Compensated temperature range: -10 ~ +40 °C
• Safe load limit: 150% Emax
• Ultimate overload: 300% Emax
• Protection degree IP68
• Load cells with stainless steel body
• 6-core armoured cable, PVC sheath, 18m length, 9mm diameter.
• Nickel plated steel cable gland.
• Armoured Anti Rodent Cable with Stainless Steel Armour.
• Self-centring spherical bases.

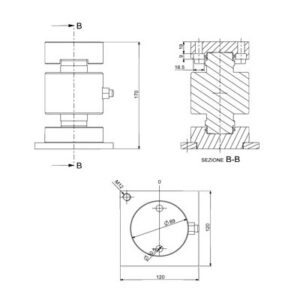

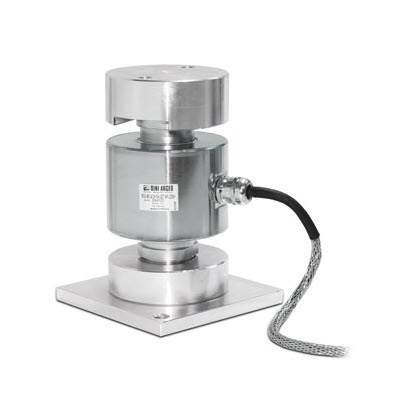

• Equipped with anti-rotation system, to be combined with KRCA cups for proper operation.
