TECHNICAL FEATURES

METROLOGICAL:

• Rated capacity (Cn): 30t
• Combined error: ± 0,013 %Cn
• Temperature effect on zero: 0,0014 %Cn/°C
• Temperature effect on sensitivity: 0,0011 %Cn/°C
• Creep error (30 min.): 0,018 %Cn

LEGAL METROLOGY OIML R60

• Accuracy class: C4
• Max. number of intervals (nmax): 4000e OIML
• Minimum verification interval (vmin): 10000
• Z= Emax/(2xDR): 4000

ELECTRICAL

• Nominal range of excitation voltage: 1 – 15Vdc
• Rated output at Cn: 2mV/V
• Zero balance: < ± 2.50%Cn
• Input resistance: 815 ± 20Ω
• Output resistance: 700 ± 0.35Ω
• Current Adjustment: 0,1 %Cn
• Over voltage protection: 10kA/20kV (8/20µs) – IEC61000-4/5
• Insulation resistance: 5000MΩ/50V

GENERAL

• Service temperature range: -20 ~ +60 °C
• Compensated temperature range: -10 ~ +40 °C
• Safe load limit: 150% Emax
• Ultimate overload: 300% Emax
• Protection degree IP68

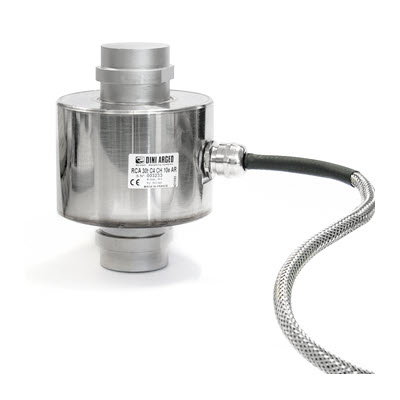

• Load cells with stainless steel body
• 4-core armoured cable, PVC sheath, 20m length, 7mm diameter.
• Nickel plated steel cable gland.
• Armoured Anti Rodent Cable with Stainless Steel Armour.
• Self-centring spherical bases.

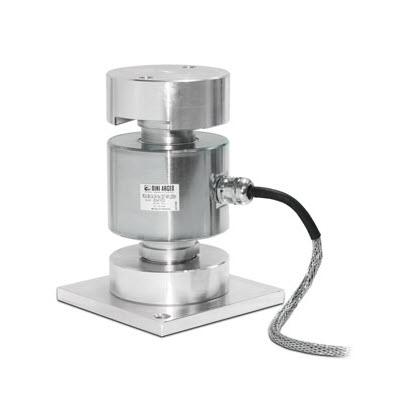

• Equipped with anti-rotation system, to be combined with KRCA cups for proper operation.
