Brand:

BEL M5 Series – 220g/ 0.1mg – Analytical Balance

Call for price

  • Model: M5-M214Ai
  • Capacity [Max]: 220g
  • Resolution [d]: 0.1mg
  • Calibration: Automatic internal
  • Pan size: Ø 80 mm
  • 1 Year Warranty
GET QUOTATION

Brand:

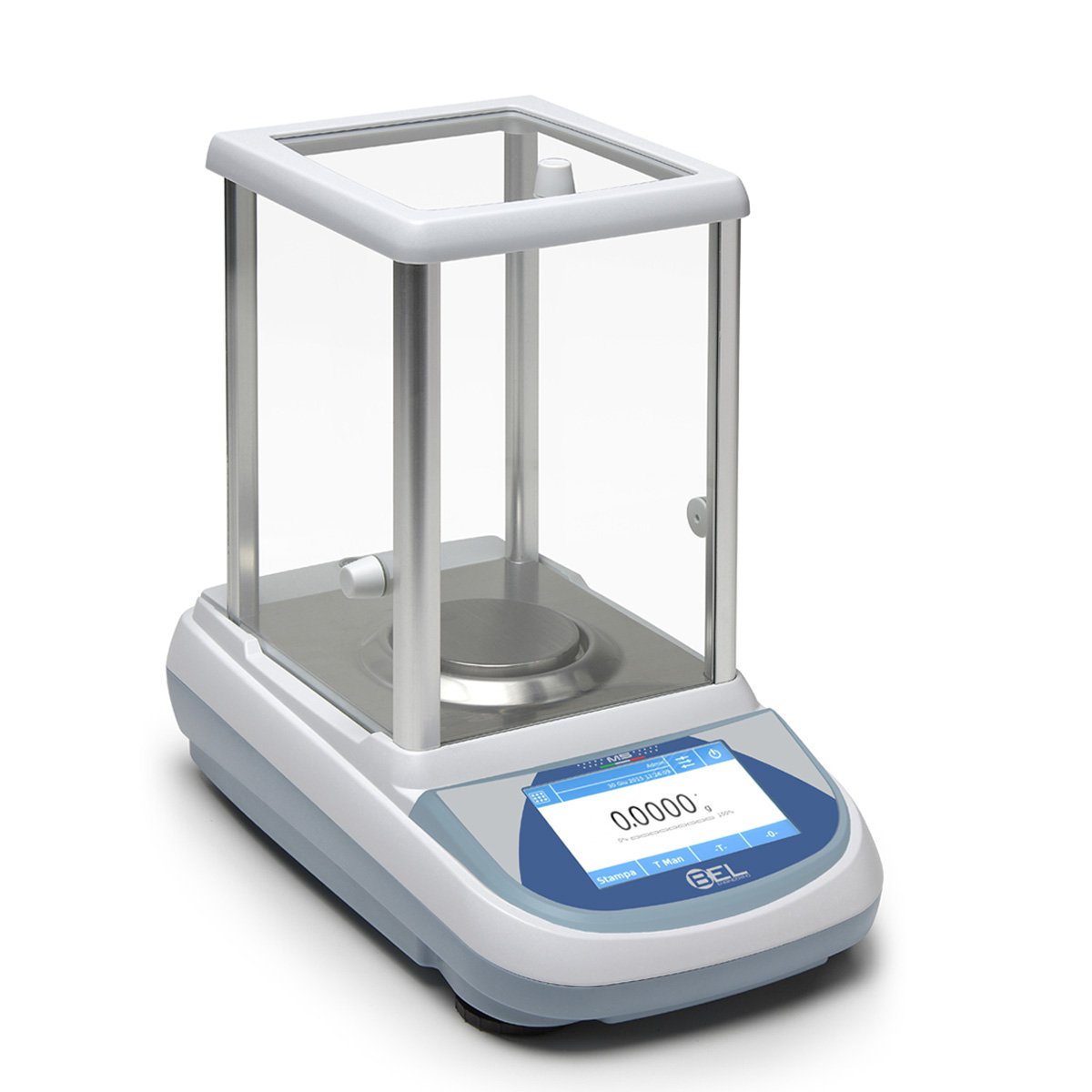

BEL M5 Series – 220g/ 0.1mg – Analytical Balance

Call for price

  • Model: M5-M214Ai
  • Capacity [Max]: 220g
  • Resolution [d]: 0.1mg
  • Calibration: Automatic internal
  • Pan size: Ø 80 mm
  • 1 Year Warranty
GET QUOTATION

M5 analytical balances are the most innovative and advanced series made by BEL Engineering. Equipped with large 5’’ color touch screen display, it gives an user-friendly access to all the balance’s advanced applications and internal databases.

The user has easy and intuitive access to all the functions thanks to the icon-driven menus. This means more efficiency, productivity and interactivity. A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case.

The many on-board functions already included, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient.



Overview

  • Electromagnetic force restoration weighing system
  • Highly integrated weighing cell
  • Automatic internal calibration (only “i” models)

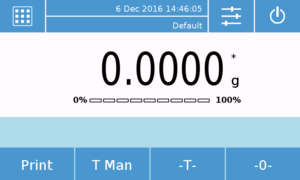

  • 5’’ Touch-screen Display 800×480
  • RS232 serial interface
  • Selectable Measuring units
  • Internal Database
  • GLP
  • Multi Languages (EN-DE-FR-IT-SP-PT)
  • Multi-user with password protection
  • USB port for import/export database data

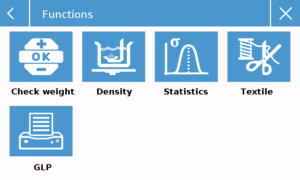

  • Advanced piece counting function with Statistics report
  • Textile function to measure fibers with Statistics report

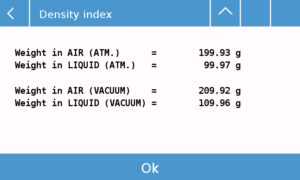

  • Advanced Density function, with density index (DI) calculation
  • Formulation (Recipe)
  • Check weighing
  • Percentage weighing
  • Weights adding
  • Animal weighing
  • Max load determination (Peak hold)
  • Large glass draft shield with 3 sliding doors for easy access to the items being weighed



Technical Features

Capacity [Max] 220g
Resolution [d] 0,1mg
Calibration Automatic internal
Pan size Ø 80 mm
Response time (sec.) ≤4
Linearity ± 0,0003g
Repeatibility 0,1mg
Verification N/A
Minimum Load 10 mg
Display TOUCH-SCREEN 5”
Tare Range (Subtractive) 220 g
Span Drift In +10…+30°c ± 3 ppm/°C
Interface RS232
Database Capacity 3000
Windshield Type And Dimensions 3 sliding windows / 162x171x225 mm
Working Temperature 5 – 35°C (15-30°C for verified models)
Power Supply 110-230Vac. 50/60Hz, output 24V 500mA 13VA
Power Consumption (Max) 2 Watt
Calibrates With (Class) 200 g (E2)
Balance Dimensions (W X L X H) 215 x 345 x 345 mm
Net Weight / Gross Weight, Approx. 6,3 / 8,9 Kg
Package Size (W X L X H) 390 x 520 x 630 mm



Accessories

  • Portable ioniser Ion-A15 (BL0371)
  • Serial Printer TLP-50, with date/time (C054)
  • Serial Printer DPP-250 (AC007)
  • Serial Printer STAT , with Stastistics functions (AC022)
  • Density KIT for solids and liquids (AC002)
  • Serial to USB converter (E1002)
  • Serial cable for serial output to printer or PC (E743)
  • USB pendrive 8 Gigabyte
  • Stylus pen for touchscreen
  • Factory Calibration certificate (BL0333)
