Brand:

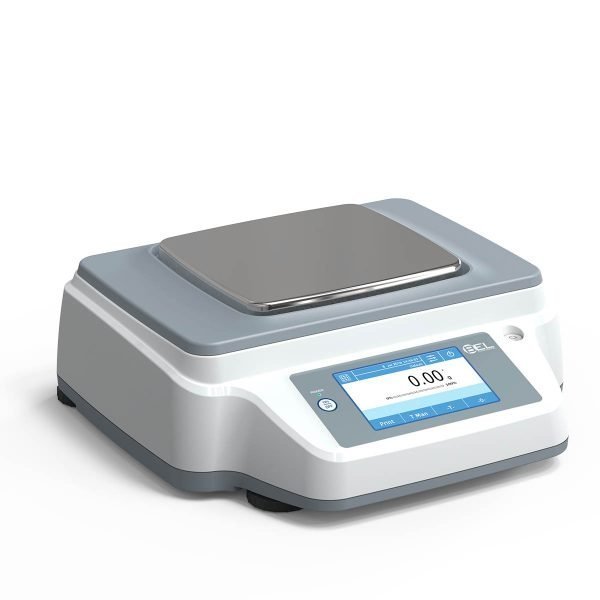

BEL M5-RB Series 0.01g – High Capacity Precision Balance

Call for price

Call for price
Call for price
Call for price
Call for price
  • Capacity [Max]: 12100g
  • Pan size: 175x195mm
  • Calibration: External
  • Repeatibility: 0,01g
  • Linearity: ± 0,03g
  • Response time (sec.): ≤4
  • Resolution [d]: 0.01g
  • 1 Year Warranty
GET QUOTATION

Brand:

BEL M5-RB Series 0.01g – High Capacity Precision Balance

Call for price

Call for price
Call for price
Call for price
Call for price
  • Capacity [Max]: 12100g
  • Pan size: 175x195mm
  • Calibration: External
  • Repeatibility: 0,01g
  • Linearity: ± 0,03g
  • Response time (sec.): ≤4
  • Resolution [d]: 0.01g
  • 1 Year Warranty
GET QUOTATION

ModelScale DivisionWeighing Scale CapacityPrice
M5-RB62020.01g (10mg)6.2kgCall for price
M5-RB82020.01g (10mg)8.2kgCall for price
M5-RB101020.01g (10mg)10.10kgCall for price
M5-RB121020.01g (10mg)12.10kgCall for price

The new M5-RB high capacity balances bring robustness, reliability and a high level of performance. The M5-RB models are equipped with a large 5’’ color touchscreen display that gives an user-friendly access to all the balance’s advanced applications and internal databases.
The user has easy and intuitive access to all the functions thanks to the icon-driven menus. This means more efficiency, productivity and interactivity.

The many embedded functions make these balances an ideal instrument of work for many applications inside and outside laboratory and factory.



Overview

  • Electromagnetic force restoration weighing system
  • High performance load cell
  • Automatic internal calibration and external calibration
  • 5’’ Touch-screen Display 800×480
  • RS232 serial interface
  • Selectable Measuring units
  • Internal Database
  • GLP
  • Multi Languages (EN-DE-FR-IT-SP-PT)
  • Multi-user with password protection
  • USB port for import/export database data
  • Advanced piece-counting function with Statistics report
  • Textile function to measure fibers with Statistics report
  • Advanced Density function, with density index (DI) calculation
  • Formulation (Recipe)
  • Check-weighing
  • Percentage weighing
  • Weights adding
  • Animal weighing
  • Max load determination (Peak hold)



Technical Features

Capacity [Max] 12100g
Pan size 175x195mm
Calibration External
Verification
Repeatibility 0,01g
Linearity ± 0,03g
Response time (sec.) ≤4
Resolution [d] 0,01g



Accessories

  • Ioniser Ion-A15 (BL0371)
  • Serial Printer TLP-50, with date/time (C054)
  • Serial Printer DPP-250 (AC007)
  • Serial Printer STAT, with Statistics functions (AC022)
  • Portable rechargeable battery pack (AC015)
  • Serial to USB converter (E1002)
  • Serial cable for serial output to printer or PC (E743)
  • Factory Calibration certificate (BL0333)

Additional information

Model

, , ,

Placement

Power Supply

Product type

Scale Division

Series

Tray Size

Type of display

Units

Warranty

Weighing Scale Capacity

, , ,
