Brand: BEL
Categories: Accessories, Weighing Balances, Weighing Scale Printers
Call for price

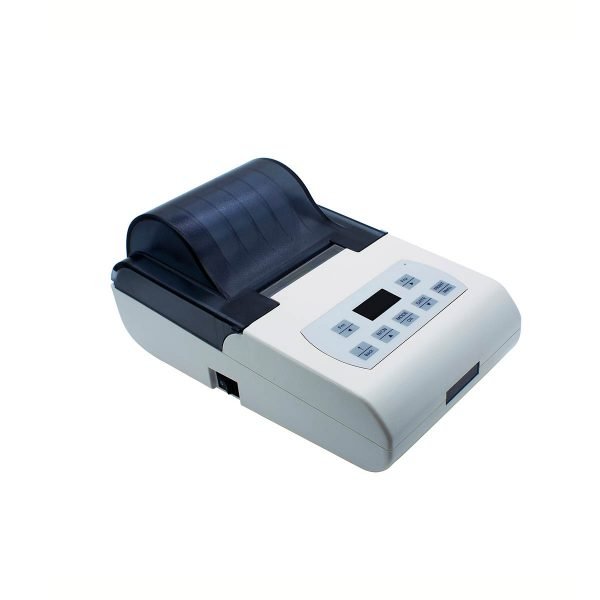

TX-110 is a high-speed dot-matrix printer suitable for long-term data retention. It is compliant with ISO/GLP procedures, it is equipped with a bright OLED display and has various operating modes:
• DIRECT. Prints out current weight value
• TARE/NET/GROSS. Prints out these values separately
• SUM. Prints out the total value of samples
• AVERAGE. Prints out the average of samples
• FORMULATION. Print out each sample’s weight independently when mixing samples
• PIPETTE CALIBRATION. Calibrate capacity of pipette
• USER DEFINED. Operator can set a multiplicative coefficient
• COMPARATOR. Prints out weight value only when inside a defined range
• AUTOMATIC TIMING. Prints out weight value at defined time intervals
Brand: BEL
Categories: Accessories, Weighing Balances, Weighing Scale Printers
Call for price
TX-110 is a high-speed dot-matrix printer suitable for long-term data retention. It is compliant with ISO/GLP procedures, it is equipped with a bright OLED display and has various operating modes:
• DIRECT. Prints out current weight value
• TARE/NET/GROSS. Prints out these values separately
• SUM. Prints out the total value of samples
• AVERAGE. Prints out the average of samples
• FORMULATION. Print out each sample’s weight independently when mixing samples
• PIPETTE CALIBRATION. Calibrate capacity of pipette
• USER DEFINED. Operator can set a multiplicative coefficient
• COMPARATOR. Prints out weight value only when inside a defined range
• AUTOMATIC TIMING. Prints out weight value at defined time intervals
| Code: | AC030 |
|---|
| Type | Impact dot-matrix serial printer |
|---|---|
| Charachter size | 1,7mm (W) x 2,6mm (H) (approx.) |
| Printer paper | Normal paper, 57mm width, 50mm in diameter |
| Print speed | 1,7lines/sec (approx.) |
| Printer head life | 1.000.000 lines |
| Display | OLED 128×64 Dot matrix 0,96” |
| Clock | Built in |
| Display | OLED 128×64 Dot matrix 0,96” |
| Interface | RS-232C (male Dsub-9pin) |
| Baud rate | 300, 600, 1200, 2400, 4800, 9600, 14.4k, 19.2k, 38.4k, 115.2k |
| External power supply unit (included) | Input 100-240 V AC, 50/60Hz; Output 12 V DC / 2A |
| Power consumption | 8W (printing) 0.5W (standby) |
| Operating conditions | 5-45°C ; humidty 10-80% not condensing |
| Type of display | |
|---|---|
| Interface | |
| Placement | |
| Power Supply | |
| Product type | |
| Series |
