MAIN FEATURES

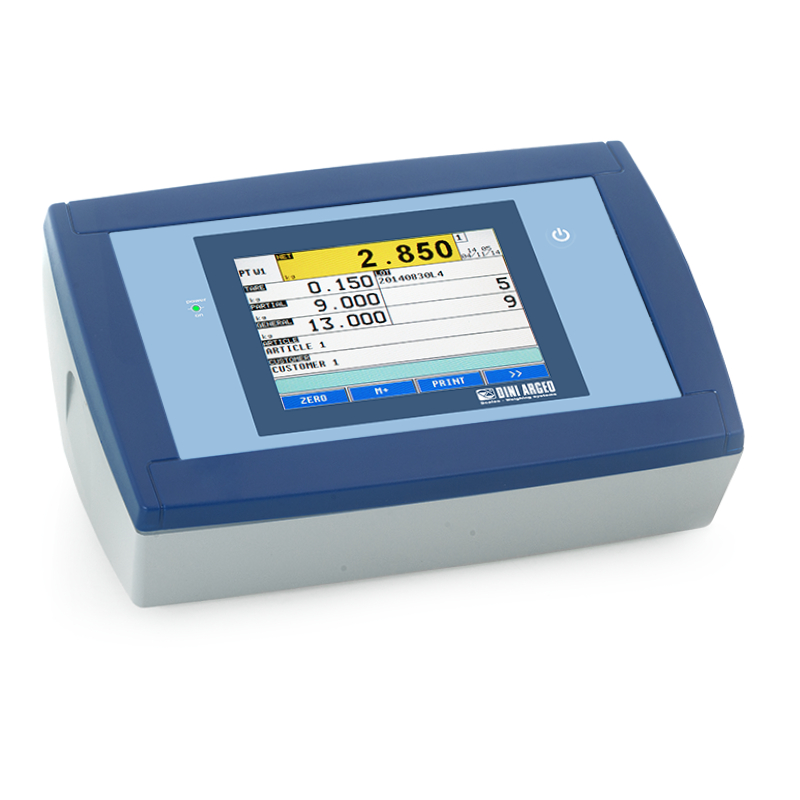

• Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
• Multilanguage software.
• QWERTY, AZERTY o QWERTZ keyboard, selectable.

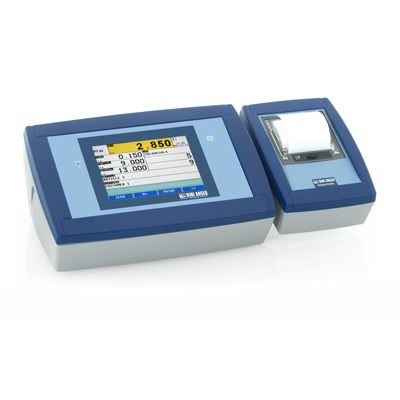

• ABS waterproof enclosure, with new IP65 protection system (IP40 on version with thermal printer).
• Dimensions: 278x125x186 mm.
• Suitable for use on the table, column, or wall.
• Real time clock and permanent data storage.
• Fitted alibi memory, integrated on the motherboard.
• Slot for built-in micro SD for recording logos (upon request).
• Functions available with DINITOOLS utility
  – Configuration, data entry and print formatting.
  – Recording and filing of all the information on PC.
  – Complete retrieval of the configuration.
  – Instrument calibration with numeric values.
  – Customization of the screens.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
• Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
• Specific version available, which provides the management of the most common digital load cells for weigh bridges (models 3590ETD and 3590ETD8).
• Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
• Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
• Connectable to printers and labellers with free programmation of the printout formats.
• 110-240 Vac power supply.

COMPLETELY CUSTOMIZABLES SCREENS

• Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:

• The “Dini Display Tool” is a PC software which allows you to quickly customize the TOUCH SCREEN.

I/O SECTION

• 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optional interfaces.
• 1 RS232 serial port (RS485 optional), for connection to printer, remote scale, badge reader, or digital load cells.
• Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
• 4 optoisolated outputs (optional).
• 2 optoisolated inputs (optional).
• External Profibus or Modbus/TCP,interface (optional), for automation management.
• External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with standard AF01 weighing program).
• Modbus RTU Interface.
• Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.

MAIN CERTIFICATIONS

• EU Type Examination Certificate (45501:2015)
• OIML R76
• OIML R51 – MID
• OIML R134 (AF09)
• Australian legal for trade certificate of approval (NMI S788)

APPLICATION SOFTWARE

• AF01: Totalization and formula weighing (integrated)
• AF02: Pieces/quantity counting (optional)
• AF03: Weighbridges – Input/Output vehicle (optional)
• AF04: Statistical checking of prepackaged goods (optional)
• AF05: Price compunting and industrial labelling (optional)
• AF08: Wheel and axle static weighing with 2 or various platforms (optional)
• AF09: Software for dynamic and static axle weighing with 1 or 2 platforms (optional)
• BATCH1: Single product dosage systems in loading and unloading (optional)

CUSTOMISED APPLICATIONS

Thanks to our integrated development, you can create complete customised applications in autonomy:

• wizards, operator messages
• serial port management, protocols customization
• digital I/O full management
• sequential or simultaneous automations
• data entry, custom archives

Dini Argeo can offer the service of custom development programs.
