Tags:

Brand:

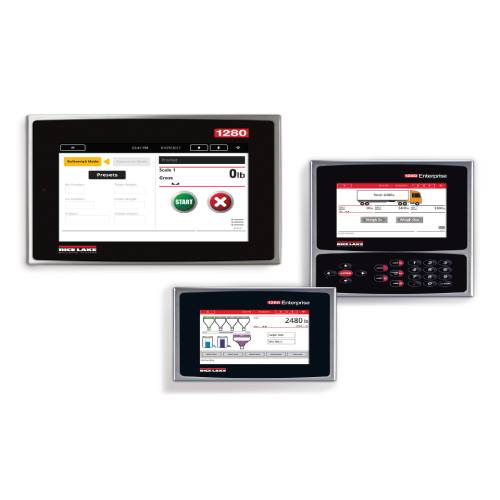

1280 Enterprise Series Programmable Weight Indicator and Controller

Categories:

0.00 AED (Excl. VAT)

  • Customizable color touchscreen with graphical user interface
  • 22 softkeys with 10 user-defined keys
  • Tactile keypad for scale operations, numeric entry and navigation
  • On-screen keyboard available during entry mode (or external keyboard)
  • Built-in web server for remote access, systems integration and data monitoring
  • Multi-language operation and text entry
  • Supports eight scales within five different kinds:
    • Analog load cell, multi-range/interval weighing
    • Total scale summing
    • Serial input scales
    • iQUBE² scales
    • Program scales



  • Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs, and protocol interfaces
  • iRite™ Programming Software
  • Customizable user applications with event-based functions
  • 150 built-in functions for application processes & data tables
  • Transfer data via FTP server
  • Dual-port assignments to print weight tickets, iRite reporting or iQUBE2 alerts
  • Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
  • Alibi memory captures serial port transmissions
  • Four configurable data stream formats
  • 100 setpoints, 18 configurable setpoint types
  • Eight digital I/O for control and pulse count
  • Three different enclosure types: universal with tilt stand, panel mount and wall mount
GET QUOTATION

Brand:

1280 Enterprise Series Programmable Weight Indicator and Controller

Categories:

0.00 AED (Excl. VAT)

  • Customizable color touchscreen with graphical user interface
  • 22 softkeys with 10 user-defined keys
  • Tactile keypad for scale operations, numeric entry and navigation
  • On-screen keyboard available during entry mode (or external keyboard)
  • Built-in web server for remote access, systems integration and data monitoring
  • Multi-language operation and text entry
  • Supports eight scales within five different kinds:
    • Analog load cell, multi-range/interval weighing
    • Total scale summing
    • Serial input scales
    • iQUBE² scales
    • Program scales



  • Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs, and protocol interfaces
  • iRite™ Programming Software
  • Customizable user applications with event-based functions
  • 150 built-in functions for application processes & data tables
  • Transfer data via FTP server
  • Dual-port assignments to print weight tickets, iRite reporting or iQUBE2 alerts
  • Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
  • Alibi memory captures serial port transmissions
  • Four configurable data stream formats
  • 100 setpoints, 18 configurable setpoint types
  • Eight digital I/O for control and pulse count
  • Three different enclosure types: universal with tilt stand, panel mount and wall mount

Tags:

GET QUOTATION

1280 Enterprise Series Specifications

Power:
AC voltages: 100-240 VAC; 50-60 Hz
DC voltages: 11-30 VDC
Consumption: 60WExcitation Voltage:
10 ± 0.5 VDC
16 x 350Ω or 32 x 700Ω load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz–120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8 million counts/8,000,000
Display: 1,000,000

System Linearity
± 0.01% full scale

Digital I/O:
Eight I/O channels on CPU board
Optional 24-channel I/O expansion boards

 Communication Ports:
Port 1 & 2: Full duplex RS-232 with CTS/RTS,
RS-422/485
Baud Rate: 1200 to 115200
Port 3: USB 2.0 Device (Micro)
Port 4: Bluetooth® SPP 2.1+EDR
USB Host: (2) Type A Connectors max 500 mA
Ethernet: Wired 10/100 Auto-MDX
Ethernet: Wireless 802.11 b/g/n 2.4GHzOnboard:
Selectable filters: Three stage, Adaptive or Damping
Embedded Linux® OS
8 GB eMMC (system use)
1 GB DDR3 RAM
460 MB onboard database (SQLite) storage
Up to 32 GB micro SD card (sold separately)Display:
Seven-inch, 800 x 480 pixel, 500 or 1,000 NIT
Twelve-inch, 1280 x 800 pixel, 1,500 NIT

Keys/Buttons:
22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer

 Temperature Range:
Certified: 14°F to 104°F (-10°C to 40˚C)
Operating: -4°F to 131°F (-20°C to 55˚C)Weight:
Universal enclosure: 11 lb (4.9 kg)
Panel mount enclosure: 8 lb (3.6 kg)
Wall mount enclosure: 23 lb (10.4 kg)
Panel mount 7 in touch-only: 7 lb (3.1 kg)
Panel mount 12 in touch-only: 10 lb (4.5 kg)

Rating/Material:
Stainless steel 304 enclosure
Universal: IP69K
Wall mount: IP66
Panel mount: IP69K, NEMA Type 4X and 12

Warranty:
Two-year limited warranty

EMC Immunity:
EN 50082 Part 2 IEC
EN 61000-4-2, 3, 4, 5, 6, 8, 11

Approvals:
NTEP CC 15-001/Class III/IIIL 10,000d
Measurement Canada AM-5980C,
Class III/III HD 10,000d
OIML R76/2006-NL1-16.04
Class III/IIII 10,000d
EU Test Certificate TC8596
UL/cUL Listed (universal, wall mount)
UL/cUL Recognized (panel mount)
CE Marked



280 Weight Indicator Option Slots

Six option slots that support:

  • A/D scale channels
  • Analog Input/Thermocouple
  • Digital input and outputs
  • Analog outputs
  • Serial ports
  • Four channel dry-contact relay
  • Various protocol interfaces



Numeric Keypad Model: 1280 Universal Dimensions

1280 Enterprise Series Programmable Weight Indicator and Controller

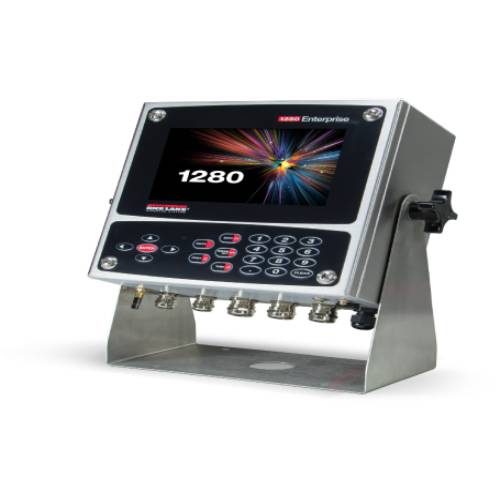

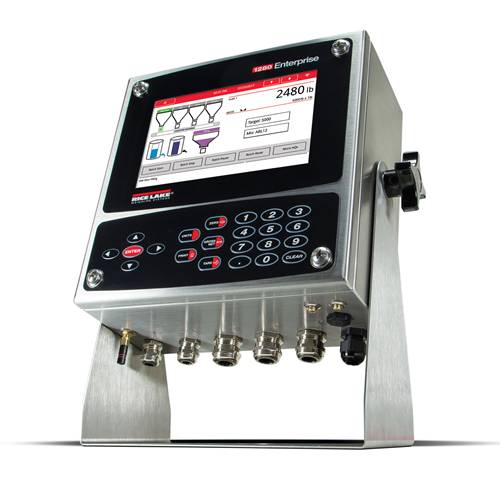

Universal (1280-2) Dimensions
A 10.86 in (276 mm) D 4.97 in (126 mm) G 5.25 in (133 mm)
B 6.22 in (158 mm) E 9.00 in (229 mm)
C 9.24 in (235 mm) F 12.50 in (318 mm)





Numeric Keypad Model: 1280 Wall Mount Dimensions

1280 Enterprise Series Programmable Weight Indicator and Controller

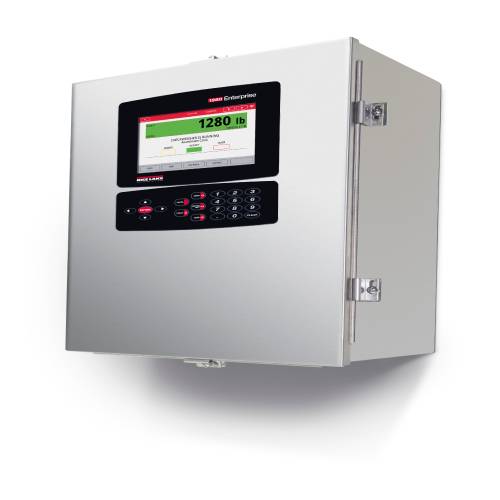

Wall Mount (1280-3) Dimensions
A 14.92 in (379 mm) D 18.84 in (479 mm) G 8.08 in (205 mm)
B 11.00 in (279 mm) E 19.64 in (499 mm)
C 18.22 in (463 mm) F 14.20 in (361 mm)





Numeric Keypad Model: 1280 Panel Mount Dimensions

1280 Enterprise Series Programmable Weight Indicator and Controller

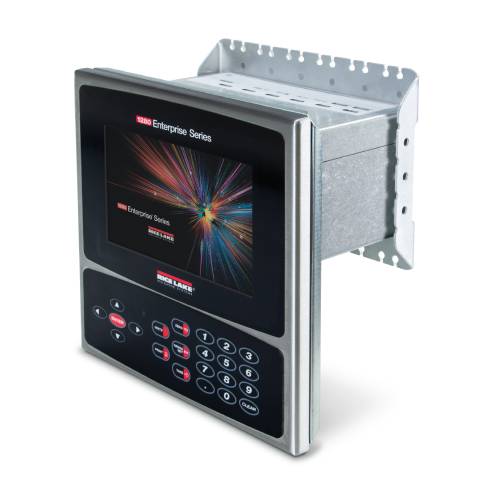

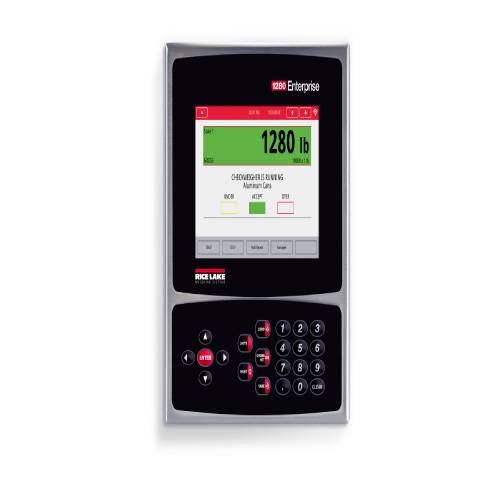

Panel Mount (1280-4) Dimensions
A 9.00 in (229 mm) D 5.34 in (136 mm)
B 9.00 in (229 mm) E 0.32 in (8 mm)
C 0.58 in (15 mm)

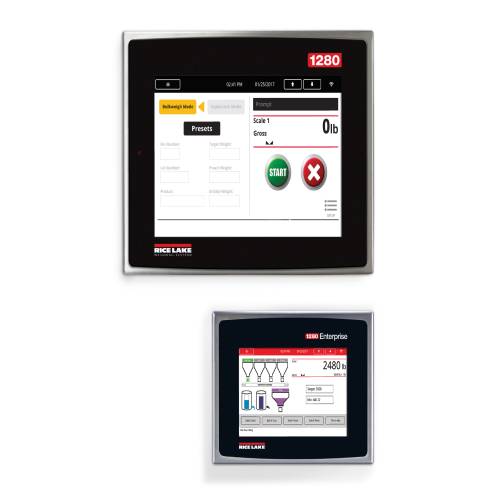

Touch-only Models: 1280 Dimensions

1280 Enterprise Series Programmable Weight Indicator and Controller

7-inch Touch-only (1280-5) Dimensions 12-inch Touch-only (1280-6) Dimensions
A 9.00 in (229 mm) A 14.00 in (356 mm)
B 6.22 in (158 mm) B 10.00 in (254 mm)
